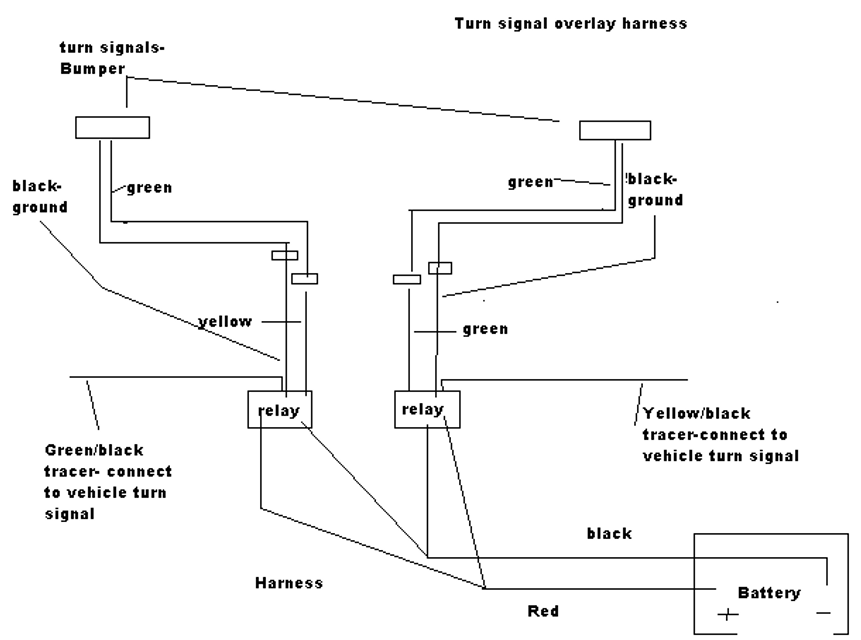

WIRE COLORS FOR DUAL LAMP INDICATORS with overlay harness (6821151R & 6821151L)
FUNCTION INDICATOR HARNESS
INDICATOR GREEN
PARK LAMP RED
EARTH BLACK
Ground - Black
Power (battery 12 volts) - Red
Left Turn signal (vehicle side) - Green/black tracer
Left turn (ARB bar light-green wire) - Green
Left turn signal-ARB light) Ground - Black lead
Right Turn Signal (vehicle side) - Yellow/black tracer
Right Turn (ARB bar light-green wire) - Yellow
Right turn signal – ARB light) Ground - Black
