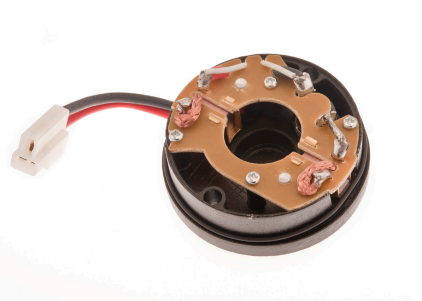

320111 Brush Cap Motor Assembly Troubleshoot, Removal and Installation

--------------------------------------------------------------------------------------------------------------------

Please note that the information below is if some compressors were packaged with the brushes not making contact making the compressor not operable.

Related to

• CKMTA12
• CKMA12
• CKMTA24
• CKMA24
• CKMTP12
• CKMTP24
• CKMP12

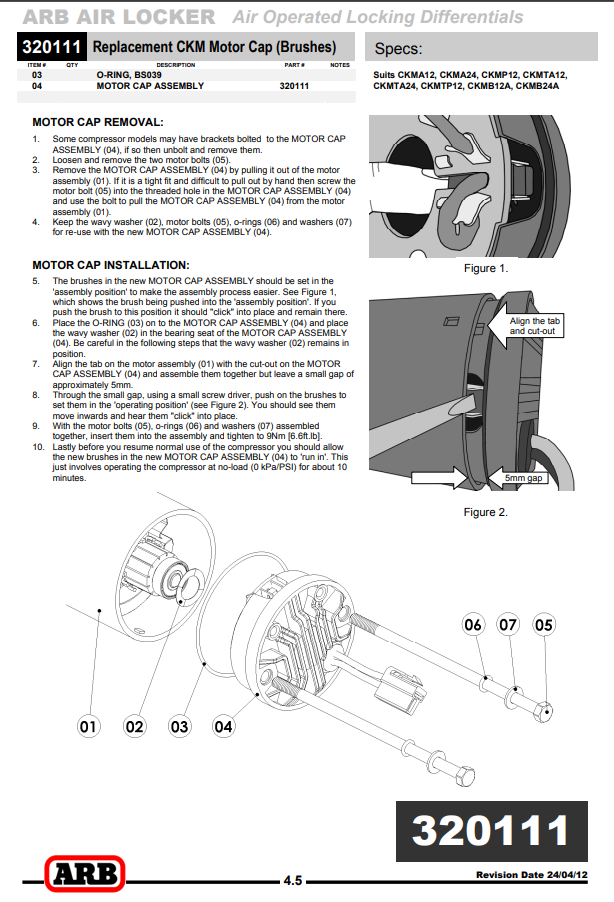

• 320111 Brush Cap Install Instructions.pdf
  200 KB Download

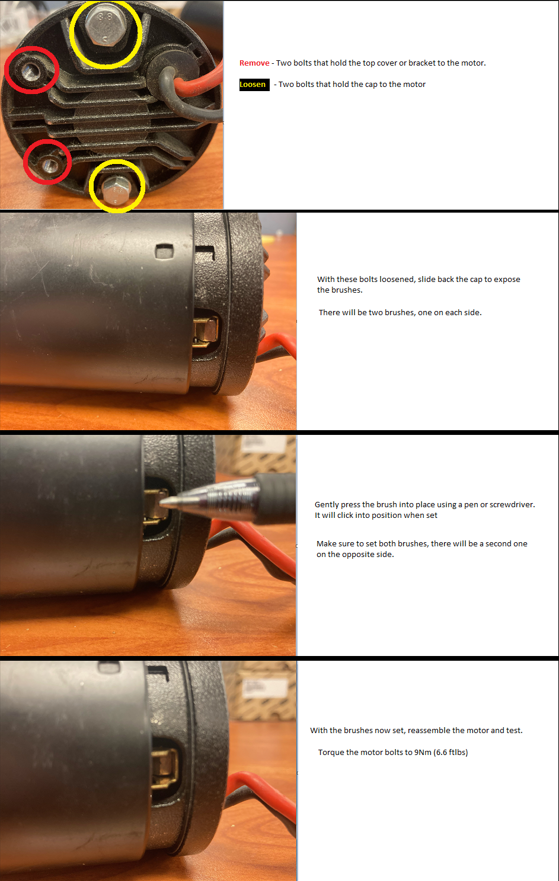

• Setting brushes.png
  1 MB Download
